Automotive Data Communication Cables: Signal Integrity Basics

Automotive data communication cables sit behind many features now treated as standard in modern vehicles. They move signals between infotainment units, cameras, radar modules, cockpit displays, control systems, and gateways, where stable transmission matters as much as raw speed.

That is why signal integrity has become a practical industry topic rather than a narrow engineering term. In both conventional vehicles and NEVs, rising data loads, compact packaging, and electrified architectures make cable quality a direct factor in performance, diagnostics, and long-term reliability.

Why signal integrity matters more now

Vehicles now carry more sensors, more displays, and more domain controllers than before. A cable is no longer just a passive connection. It is part of the communication path that determines whether data arrives cleanly, on time, and without harmful distortion.

In practical terms, signal integrity describes how well an electrical signal keeps its intended shape while traveling through a cable assembly. When the signal degrades, systems may still work in a laboratory setup, yet fail under vibration, heat, moisture, or electromagnetic stress.

This issue is especially relevant in smart cockpit electronics, ADAS links, high-speed backbone networks, and zonal architectures. GACT’s coverage of wiring harnesses, FPC systems, cockpit displays, HUD systems, and high-voltage platforms reflects how closely cable performance now connects to broader vehicle design decisions.

What automotive data communication cables include

The term automotive data communication cables covers several transmission paths used inside vehicles. Some serve lower-speed control communication, while others carry high-bandwidth video, Ethernet data, or sensor information across increasingly complex electronic architectures.

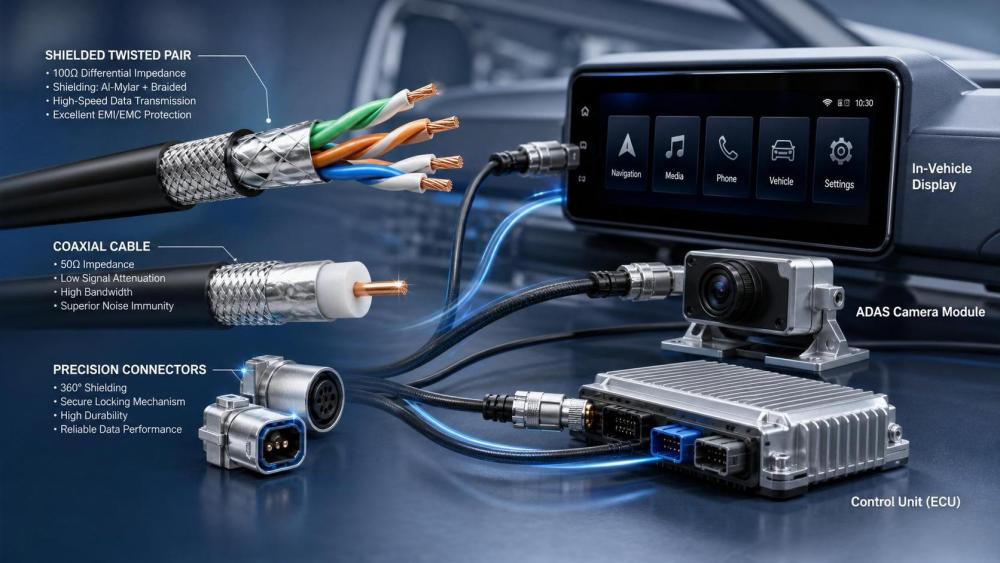

Depending on the application, the cable may use twisted pairs, coaxial construction, shielded multi-core layouts, or lightweight alternatives designed to reduce mass without losing electrical consistency. Material choice, conductor geometry, shielding, and connector matching all influence final performance.

A useful way to view these cables is not by shape alone, but by the communication burden they carry. A camera link, for example, tolerates different risks than a low-speed body network or a central computing backbone.

Typical in-vehicle use directions

• Infotainment and media systems, where display quality and stable audio-video transfer depend on clean transmission.
• ADAS sensor links, where cameras, radar, and control units require low loss and predictable latency.
• Smart cockpit electronics, including HUDs, instrument clusters, and domain controllers.
• Vehicle Ethernet and gateway communication within centralized or zonal electrical architectures.
• Battery, thermal, and chassis control communication in electrified platforms that combine power density with tighter packaging.

The basics behind signal quality

For information research, several signal integrity basics are worth tracking because they affect both technical suitability and sourcing judgment. These factors often appear in product specifications, validation reports, and standards discussions.

Impedance control

High-speed signals expect a defined impedance path. If the cable, connector, or termination changes that path, reflections can occur. Those reflections distort the signal and reduce communication margin, especially at higher frequencies.

Insertion loss

Signals weaken as they move through conductors and dielectric materials. Excessive insertion loss reduces the receiver’s ability to recover data. Longer routes, smaller conductors, and poor material consistency usually make this problem worse.

Crosstalk and shielding effectiveness

When one signal path interferes with another, crosstalk appears. In dense harness layouts, this is a common challenge. Shielding, pair balance, spacing, and grounding strategy help control unwanted coupling between adjacent lines.

EMI resilience

Automotive environments are electrically noisy. Electric compressors, inverters, battery systems, EPS units, and high-voltage harnesses can all increase electromagnetic stress. Automotive data communication cables must resist these conditions without degrading functional stability.

Connector and assembly consistency

Many field issues are not caused by cable bulk material alone. Connector transitions, crimp quality, routing radius, and assembly variation often create the mismatch points that damage real-world signal performance.

Where the industry is paying closer attention

Current market attention is moving beyond basic continuity and durability. The focus is shifting toward bandwidth readiness, integration with lightweight harness strategies, and compatibility with more centralized vehicle electronics.

This matters across major automotive regions, including China, the United States, Germany, Japan, South Korea, India, Mexico, Southeast Asia, and Europe. Each market has different sourcing structures, but the direction is similar: more data, stricter validation, and tighter cost-performance balance.

In NEV platforms, the challenge becomes even more layered. High-voltage architecture, battery thermal management, heat pump systems, and compact e-powertrain packaging can change cable routing, thermal exposure, and electromagnetic conditions around signal lines.

How to assess application value in practice

A cable should be judged inside its system context. The same product can look suitable on a datasheet yet become a weak point after routing changes, connector substitutions, or thermal exposure differences.

For that reason, automotive data communication cables are best evaluated through a combination of electrical performance, mechanical durability, and architecture fit. Looking at only conductor size or shielding description rarely gives a complete picture.

Useful checkpoints during comparison

• Match cable type to protocol speed, route length, and connector interface.
• Check impedance tolerance, attenuation data, and relevant test frequency ranges.
• Review EMI behavior under conditions similar to high-voltage or motor-adjacent installation.
• Confirm thermal, vibration, bending, and fluid-resistance capability for the actual vehicle zone.
• Consider assembly repeatability, not only raw cable construction.
• Compare whether the design supports future bandwidth growth or platform migration.

Why this topic fits broader component intelligence

Signal integrity in automotive data communication cables does not stand alone. It connects with thermal design, cockpit electronics, steering control, wiring harness strategy, and the overall move toward smarter vehicle platforms.

That connection is one reason industry portals such as GACT track cables alongside battery liquid cooling, heat pump systems, media head units, EPS, steer-by-wire systems, and high-voltage harnesses. Vehicle performance is increasingly shaped by how these subsystems interact, not by isolated parts alone.

From a market research angle, cable developments can also signal wider change. New shielding methods, material shifts, export patterns, localized production, and standard updates often reflect where vehicle architectures are heading next.

What to watch next

The most useful next step is to build a comparison framework around real application conditions. Start with the communication function, then map route length, noise environment, temperature zone, connector transitions, and validation expectations.

From there, it becomes easier to judge whether a cable is optimized for current needs only, or prepared for future data rates and architecture changes. That approach helps separate nominal specification claims from practical suitability.

As vehicles become more software-defined and electronically dense, automotive data communication cables will remain a small component with outsized influence. Following signal integrity basics is a reliable starting point for understanding both product performance and broader automotive system direction.
